스프링 장력 액츄에이터 FUSR
-
-
스프링 장력 클램핑용

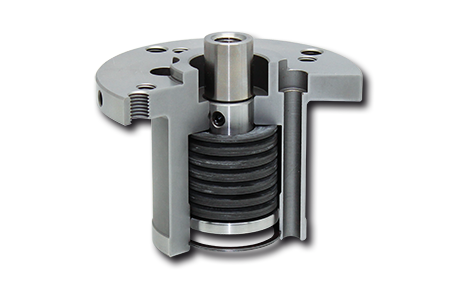

Spring Force Actuators FUSR connect RINGSPANN Precision Clamping Fixtures to the spindles of balancing machines as clamping force unit.
The component is clamped by activating the Precision Clamping Fixture with the belleville springs of the Spring Force Actuator. Release is effected via the machine-side plunger, which counteracts the spring force. The Spring Force Actuator is available in five dimensions and is capable of large clamping ranges when supplemented by different Precision Clamping Fixtures.
Eight radial threaded bores are provided for the purpose of balancing the Spring Force Actuator with Precision Clamping Fixtures. The unit is mounted on the machine with four M 8 bolts.
-
